輸入INPUT
|
|
電壓Voltage/頻率Hz
|
100V—240VAC 50-60Hz
|
|
調整范圍Adjusting range
|
90V—264VAC，47Hz—63Hz
|
|
電流Current
|
2.5A Max
|
|
保護Protection
|
內置一次性保險絲不可拆卸Internal Primary Current Fuse, Inrush Limiting
|
|
輸出 OUTPUT
|
|
紋波Ripple
|
＜300mV
|
|
瞬態響應Transient Response
|
在50%負載時0.5毫秒 0.5mS for 50% Load Change Typical
|
|
過流保護點OCP
|
105%～150%
|
|
保護Protection
|
短路保護/過載保護/過溫保護，可自動恢復.Short Circuit protection/Over voltege protection/Over Temperature protection,
Can automatically recover.
|
|
常用DC插頭Commonly DC plugs
|
USB 3.5*1.35 4.0*1.7 5.5*2.1 5.5*2.5，可按要求定做，客戶沒注明長度一律為10mm。Can be customized according to the requirement，10 mm in length if not specified。
|
|
電性 Electrical
|
|
絕緣強度Dielectric Withstand
|
4242 VDC Primary – Secondary
|
|
漏電流Leakage Current
|
0.25mA @ 2 Pin / 0.5mA @ 3 Pin
|
|
指示燈Indicator light
|
綠色：電池充滿或與電池斷開狀態，紅色：起充或充電過程；Green：charger is full or disconnect；Red：Pre-charger or charging
|
|
轉換效率 Efficiency
|
符合5級能效及ERP階段2認證 Engergy Star Level V & ErP Stage 2 Certified
|
|
EMI傳導和輻射EMI Conduction & Radiation
|
EN:55022：2010，EN55014-1，EN61000-3-3：2013
|
|
浪涌電流 surge current
|
當輸出為額定負載,環境溫度為25℃,輸入240VAC冷態起動電源時的最大浪涌電流小于30A，30A MPS@240VAC at 25 ℃ Cold start
|
|
抗靜電EMS Immunity
|
IEC61000-4-2
|
|
絕緣等級Insulation class
|
輸入對地最小50兆歐 50M ohms minimum from input to ground
|
|
平均無故障時間 MTBF
|
在25℃環境溫度下，額定負載工作平均無故障時間30,000小時；In 25 environment Temp,The Rated load MTBF 30000H
|
|
使用環境Environmental
|
|
工作溫度Operaturing Temperature
|
0 to +40°C
|
|
儲存溫度Storage Temperature
|
-20 to +80°C
|
|
相對濕度Relative Humidity
|
工作：20%～80%RH Operating 20 to 80% RH
|
|
儲存:10 - 90% RH Storage: 10 to 90% RH
|
|
冷卻方式Cooling
|
自然冷卻Natural Convection Cooling
|
|
安規認證Safety Approvals
|
|
CCC TUV-CE-EMC TUV-CE-LVD TUV-GS TUV-FCC SAA(RMC) TUV-PSE TUV-CB CUL UL ROHS
|
|
其他other
|
|
產品尺寸Case Dimension
|
140*60*32mm
|
|
包裝細節Packing detail
|
大約about230G/PCS 外箱尺寸Carton size：460*390*260mm
|
|

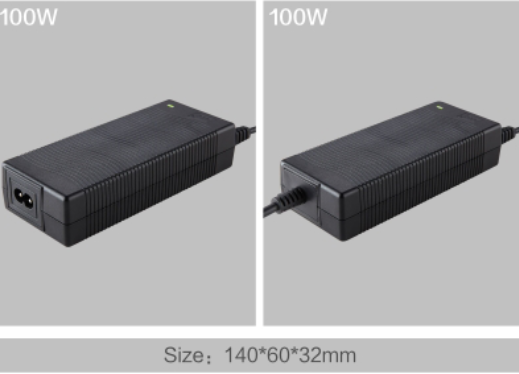

實拍圖片actual picture：
|
|
|
